Ritchie Super Multi Bale Handler

by Ritchie
$4,950.00

Try out the Ritchie Super Multi Bale Handler for fast and safe handling of straw bales.

Farmers and contractors all agree that loading 3 square or round bales onto a trailer in one movement, where the bales are all in line and tightly packed, is considerably safer and quicker with the Ritchie Super Multi Bale Grab.  Loading trailers two bales high and then adding a third to fully utilize transport is not the safest operation to complete.

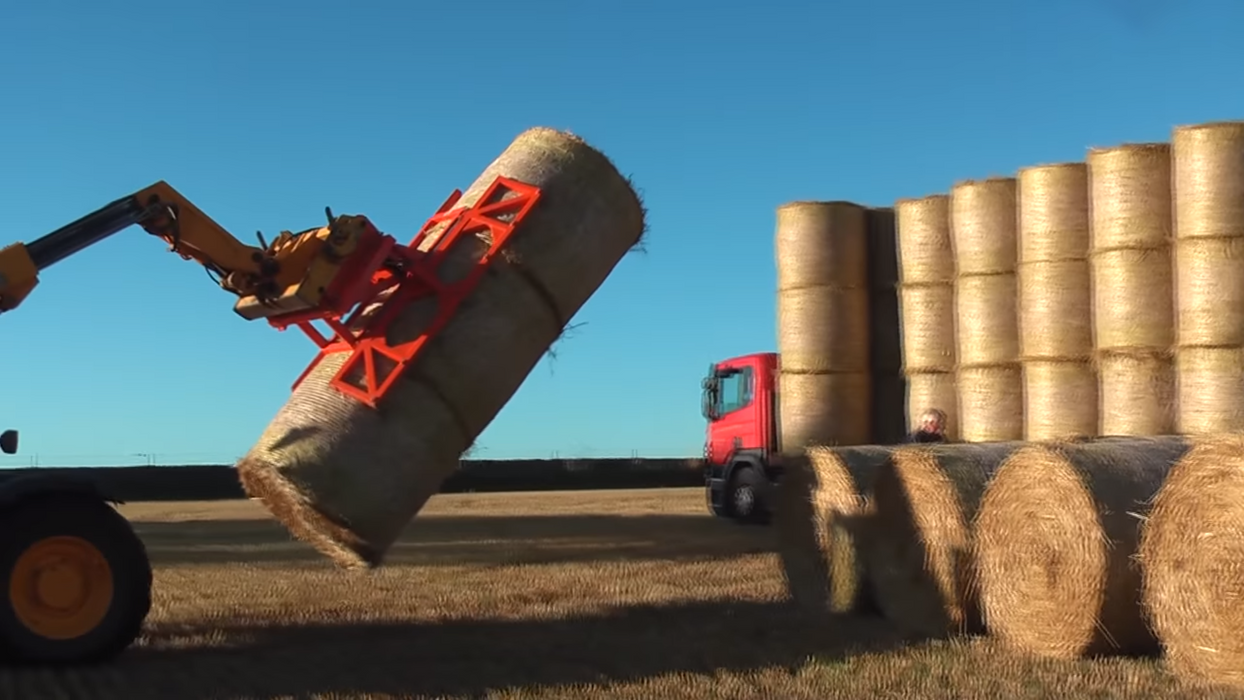

The Ritchie Super Multi Bale Handler moves 3 round bales or 4 midi square bales in one maneuver.

Featuring 14 high tensile steel tines in two folding wings, with each wing being operated by its own hydraulic ram to tightly secure the bales.  When attached to a heavy duty, high capacity front-end loader or telehandler for stability, bales are quickly and safely moved and stacked from field to farm.  Operators have good visibility when positioning the Multi Bale Handler, while the security and firmness of bales held within the grab means bales can be maneuvered through 180 degrees.

Will handle:

  • Round straw bales up to 3
  • Midi square straw bales up to 4
  • Large Hesston straw bales 2



Main features:

  • Handles 3 round straw bales up to 6ft diameter
  • Handles 4 midi and 2 large Hesston straw square bales
  • Fitted with 14 curved high tensile steel tines
  • Leaves a neat puncture mark on net wrap
  • High, see-through back frame for excellent operator visibility
  • Powered by twin ram arrangement
  • Excludes brackets and hoses

Dimensions
Length 21 "
Width 65 "
Height 90"
Weight 330 kg (U.L.)
Gross Weight 1200 kg
Extra Information
Max. Bale Weight 915 kg
