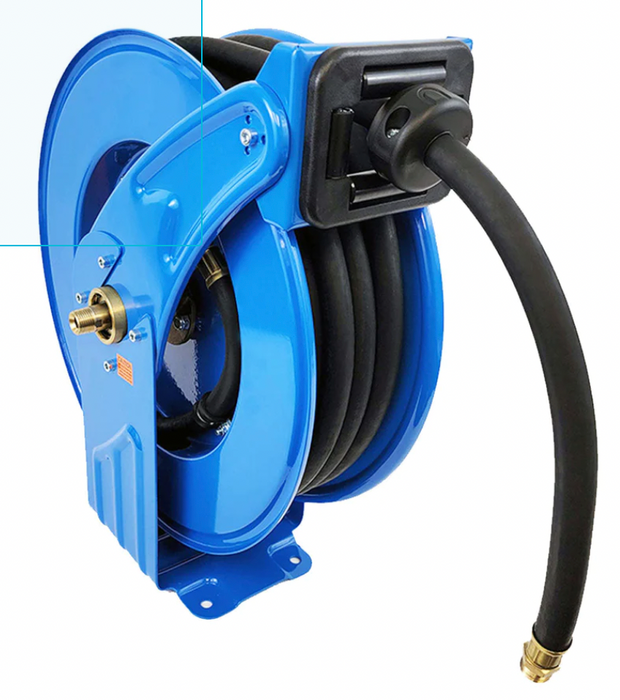

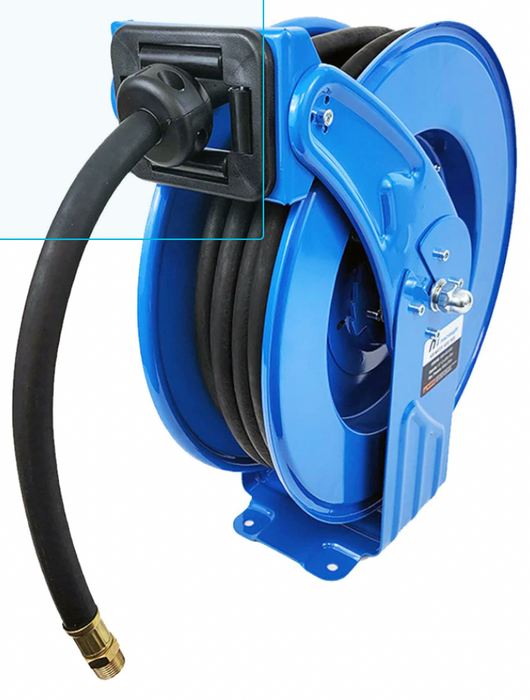

Retractable M3 Industrial Grade Air Water Hose Reel, Standard Retraction 1/2” x 50 ft

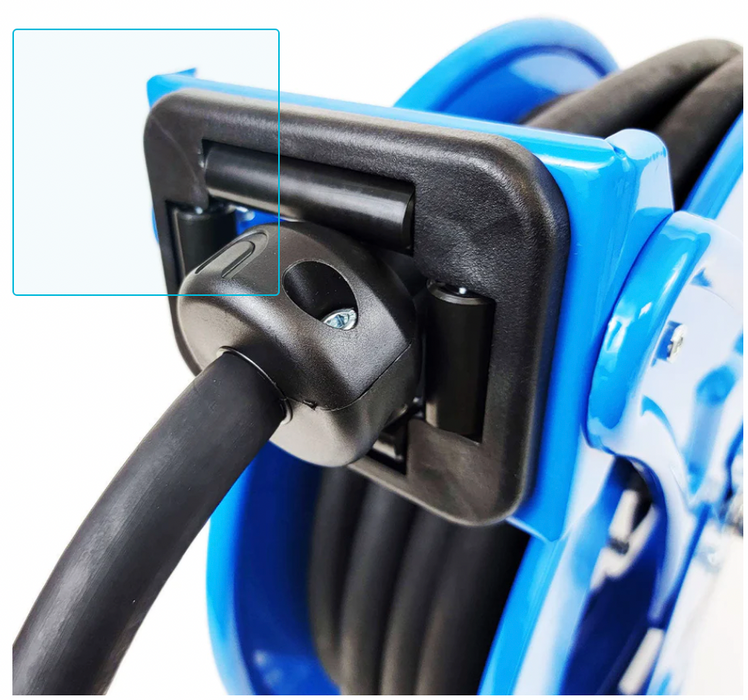

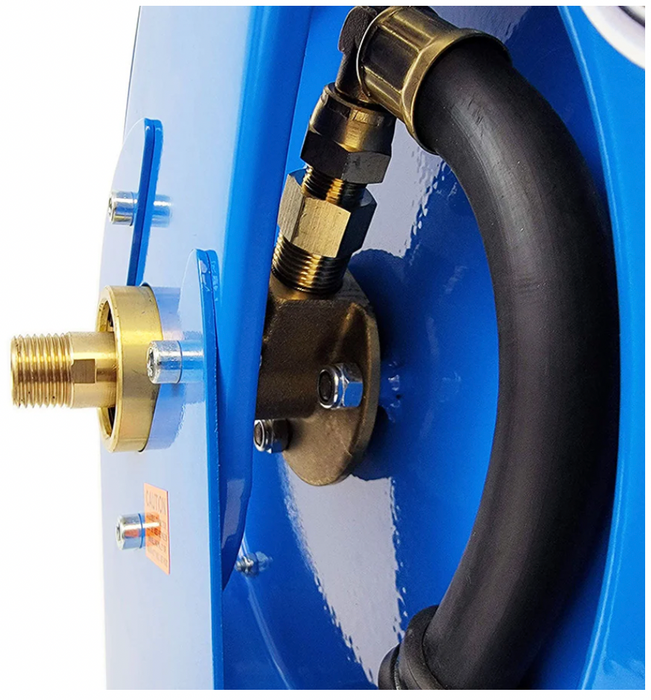

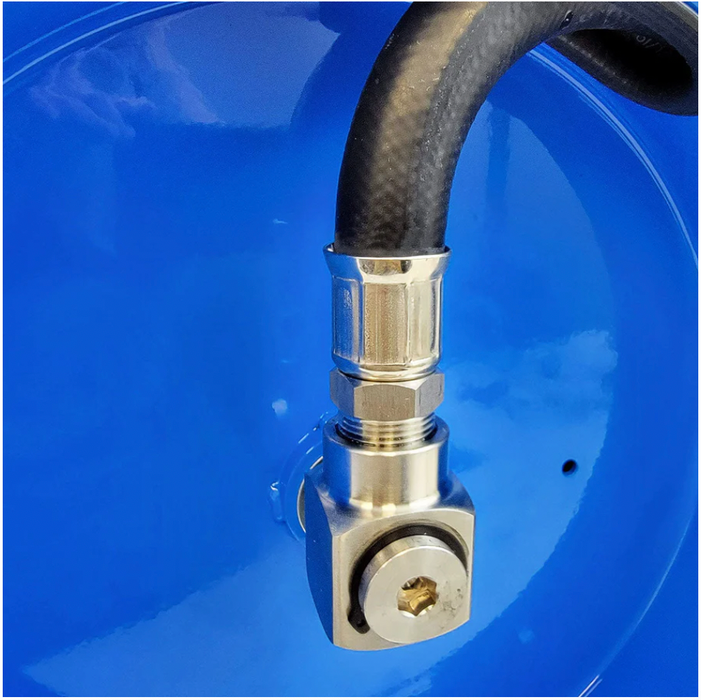

All Macnaught M3 Standard Retraction Air Water Hose Reels are Industrial Grade, Dual Pedestal Design with Heat Treated Heavy Duty Gauge Steel, Reinforced Flanged edges, Easy to Service Ball Bearing swivel with ½” MNPT Brass Connection, 4 Direction Non-Snag Rollers, Adjustable Guide Arms, Premium ½” x 50 ft NBR Rubber Hose with Brass ½” MNPT Fitting, Rated to 300 PSI and suitable for operating in -40F to 176F Water and Air ( only )  applications. Lead Hose is not provided.

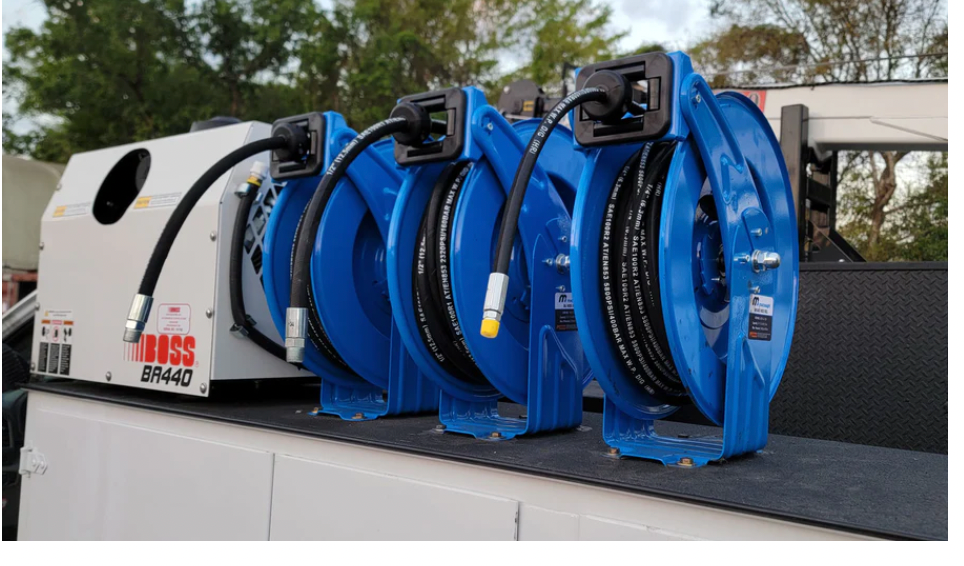

Rated for Mobile Truck Mount Applications


Macnaught M3 Specifications

Description Retractable Hose Reel for Air / Water
Part No. M3D-AW-5050
Application Air / Water
Hose Id 1/2″
Hose Length 50’
WP (psi) 300PSI
Net Weight 46lbs
Case Blue Alloy Steel
Hose Material NBR Rubber Hose with Brass ½” MNPT Fitting
Max Temp -40°F to 226°F
Reel Inlet 1/2” MNPT
Hose Outlet 1/2” MNPT
Warranty 3 Year
Fully Serviceable
