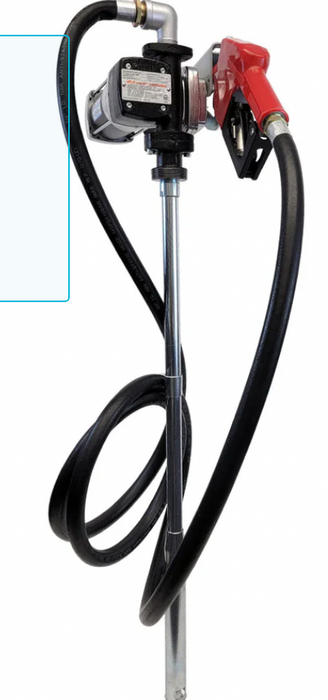

Macnaught M3 12V 20GPM High Flow 1" Fuel Transfer Pump.



Macnaught M3 High Flow Fuel Transfer Pump System – CSA Certified for Gas, Diesel, Kerosene, and Mineral Spirits. Trusted for years in the demanding Australian Mining Segment, these high-flow pumps are durable and built to last.

Invest with Confidence: Macnaught's Warranty is the Best in the Business

Hassle-Free Service: Macnaught's warranty stands out due to our commitment to customer satisfaction. We offer a straightforward, hassle-free warranty service, ensuring that any issues are resolved quickly and efficiently without any inconvenience to you.

M3 High Flow Fuel Transfer Pump Datasheet : PDF


  • 12V CSA Certified C1D1 20 GPM Rotary Vane Fuel Pump

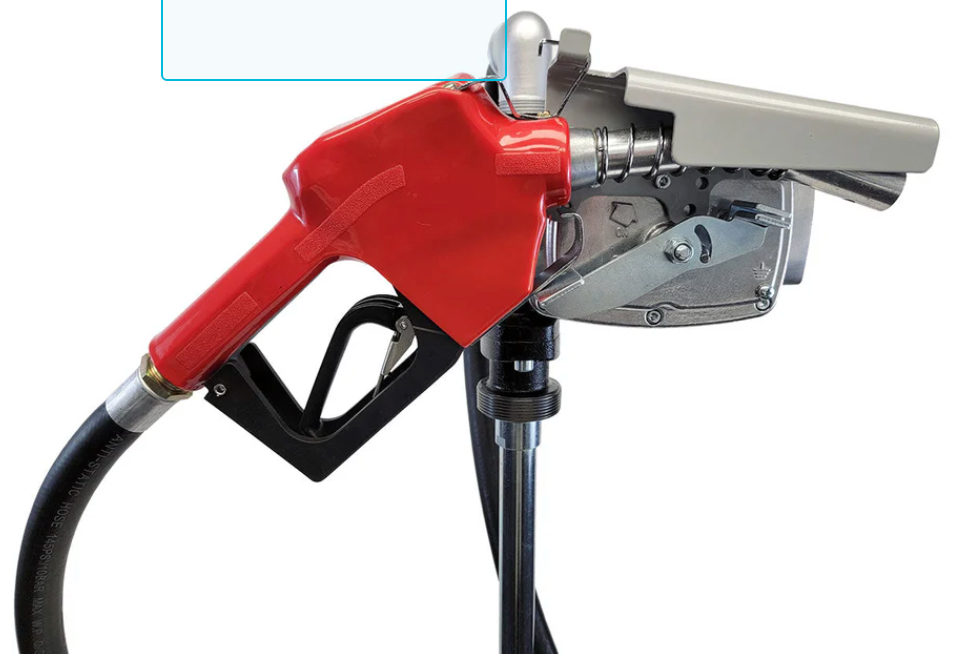

  • Premium Grade Auto Shut-Off Nozzle
  • Suitable for: Gas, Diesel, Kerosene, Mineral Spirits
  • Nozzle Holder with Locking Option
  • 14 ft x 1 inch Fuel Rated Anti Static Hose

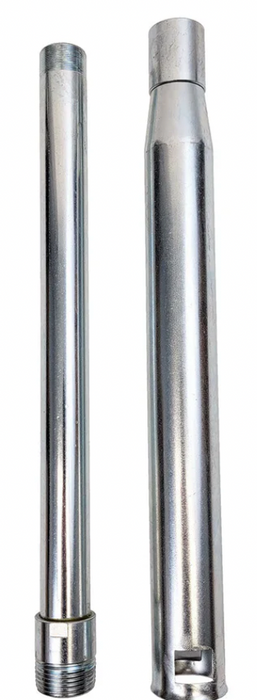

  • 2 inch Tank Adapter with expandable 27" to 36" Steel Suction Pipe

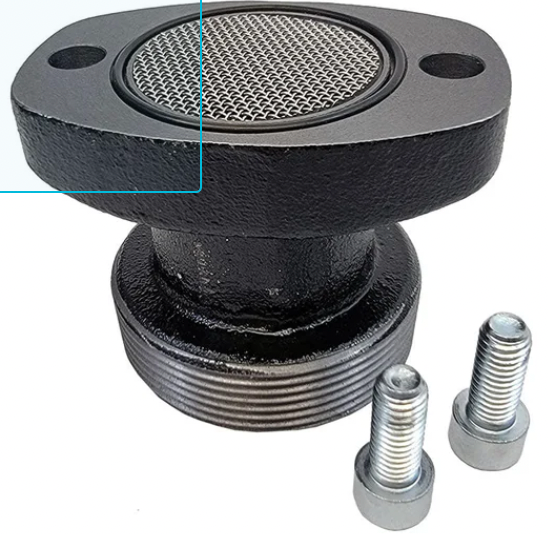

  • Inlet Filter Screen
  • Built In Bypass Valve
  • Thermal Overload Protection
  • 16 ft Power Cable
  • Duty Cycle: 30 Minutes
  • 220W / 28A Motor
  • Maximum Lift is 8 feet
  • Maximum By-Pass Time is 3 minutes
  • Do not run dry
  • 40 Pounds
