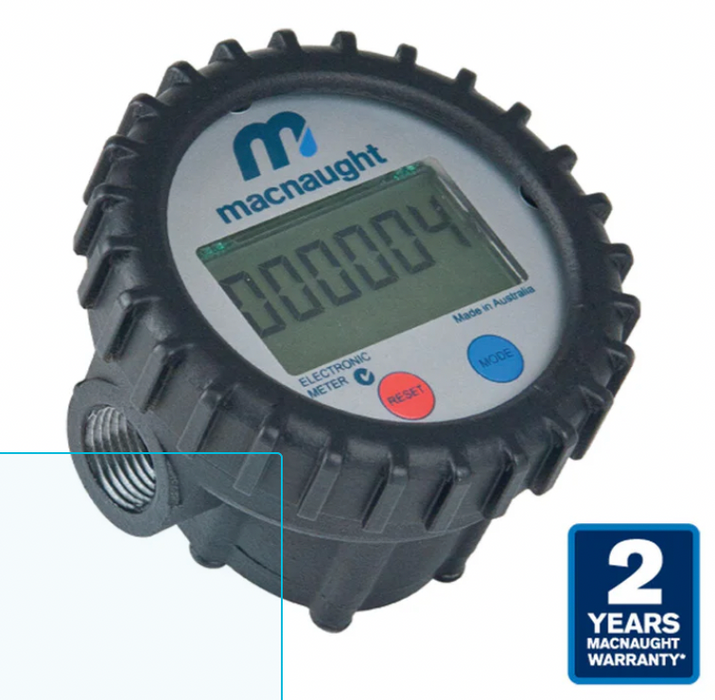

In-line Oval Gear Oil Flow Meter

Macnaught offers the IM012E-02 in-line oval gear digital register with accuracy of +/- 0.5%.  The meter has a easy to read display with both batch and cumulative totals. The ½ inch NPT ports and a working pressure of up to 1,000 psi combine to allow for flow rates of up to 8 gallons a minute. Used for in-line oil monitoring applications or can be added to non-metered oil guns. Compatible with oil, ATF, hydraulic fluid, diesel, kerosene and antifreeze up to a maximum viscosity of SAE 140. All Macnaught in-line meters come with a fully supported 2-Year Warranty!


Features & Benefits:

  • In-line oval gear technology
  • Economic and accurate fluid measurements
  • Digital LC display
  • Six digit resettable batch and non-resettable cumulative totals
  • Flow rate up to 8 gallons per minute with up to SAE140 viscosity
  • Compatible with oil, ATF, hydraulic fluid, diesel, kerosene and antifreeze

Value Proposition

  • Economic, accurate and reliable electronic flow meter

Macnaught In-Line Oil Flow Meters

Model Number IM012E-02
Flow range 0.26-8gal(1-30 L)/min
Meter / register Oval gear / Digital
Accuracy (flow rate) +/- 0.5% (lube oils)
Features 6-digit digital display resettable batch totaliser flow rate mode
Protective shroud
Inlet port 1/2" NPT (F)
Outlet port 1/2" NPT (F)
Fully serviceable
Warranty¹ 2 years
Parts guarantee² 10 years
Compatible fluids Oils up to SAE140, automatic trans fluid, engine oil, gear oil, hydraulic oil. coolant, diesel, kerosene
