Bauman Mfg. Model 1140 Drop Spreader
Bauman drop spreaders prevent waste and property damage with the most accurate de-icing dispensing equipment on the market.
Backed by a tradition of quality for over 40 years and with 9 models to choose from, Bauman has the right solution for you.
Model 1140 Features
Hydraulic or PTO Drive
Capacity: 11 cubic feet
Spreading Width: 40 inches
16 cubic feet Capacity with Optional Extensions
The 1140 is the "Big Brother" to the 640 model.
Hydraulic Flow Control
Flow control is included to reduce hydraulic flow from the tractor to the distribution drum. It allows the operator to control distribution quantity.

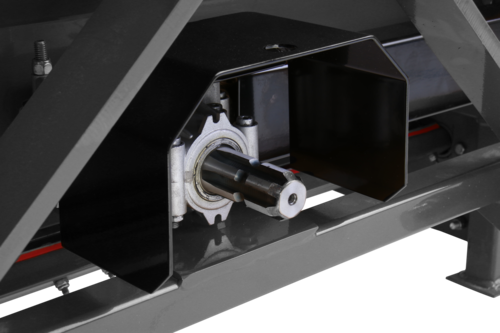

PTO attaches to the 1140 splined stub of the gear box.
Using 10 gauge steel and a durable powder coat finish, the 1140 model is built to last.
A unique polymer finger bar has a flexible memory in cold weather and retains its shape. The bar defines pressure and helps release an even quantity of de-icing material as seen with the cross hatch pattern when material is dropped.
The agitator bar rotates in the hopper to help keep salt and sand from bridging or clumping. The bar ensures the material passes through to the drum and then to the ground for an even application.
Salt / Sand Drum
The rotating drums allow placement of various de-icing material where needed. This gives controlled delivery of materials including sand, environmentally smart de-icing products as well as road and coarse rock salt.
The rotating distributor drums spread de-icing material in an even and consistent cross hatch pattern. De-icing material can then "creep" and spread out which results in an efficient use of material.
Tension Lever Assembly
The assembly regulates the rate of flow for different types of material (i.e.: fine sand vs coarse salt). The lever allows for fine tuning of the rate of flow of material.
Galvanized Grate / Lifting Lug
The grate screens and prevents larger pieces of material from entering the hopper. As a safety measure, the grate prevents human contact with the agitator. The lifting lug is used to safely install or remove unit from tractor. It also keeps the grate secure.
Sealed bearings protect against environmental wear.
They are also easily maintained and re-greasable.
An 8"extension ring is available for the hopper providing an additional 5 cubic feet of capacity.
Universal Skid Steer Adapter Plate
Optional universal skid steer 3 point hitch adapter plate is available.

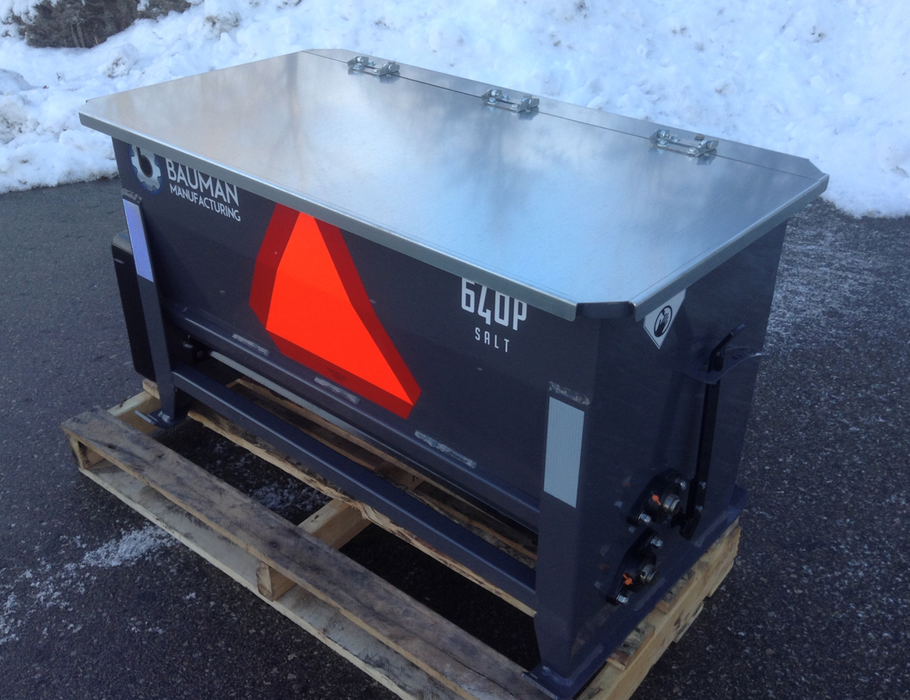

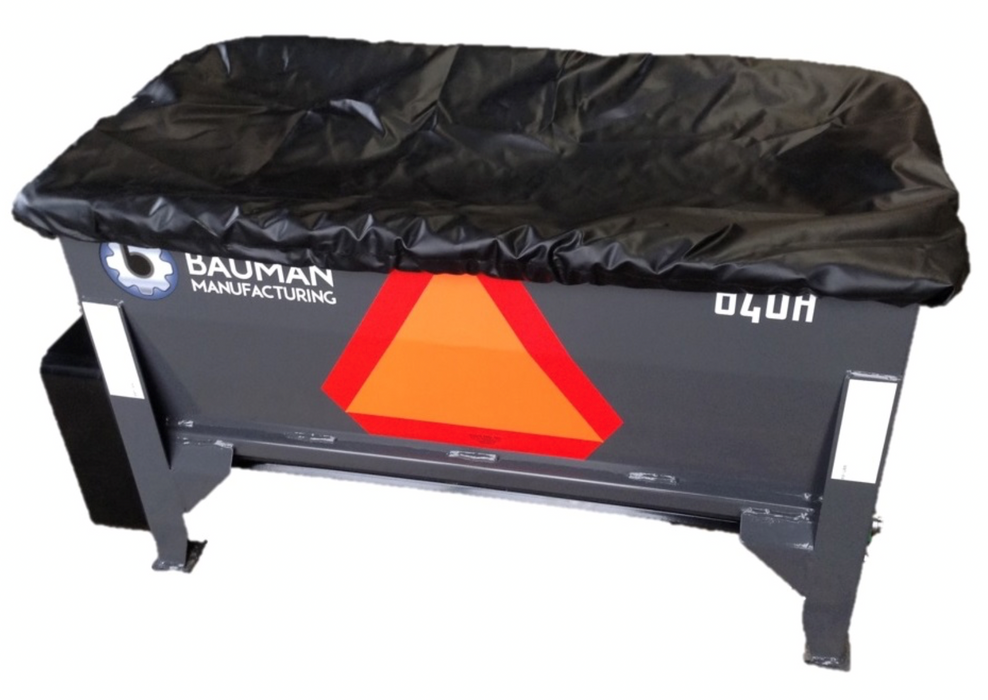

Optional soft or hard cover available
